Features:

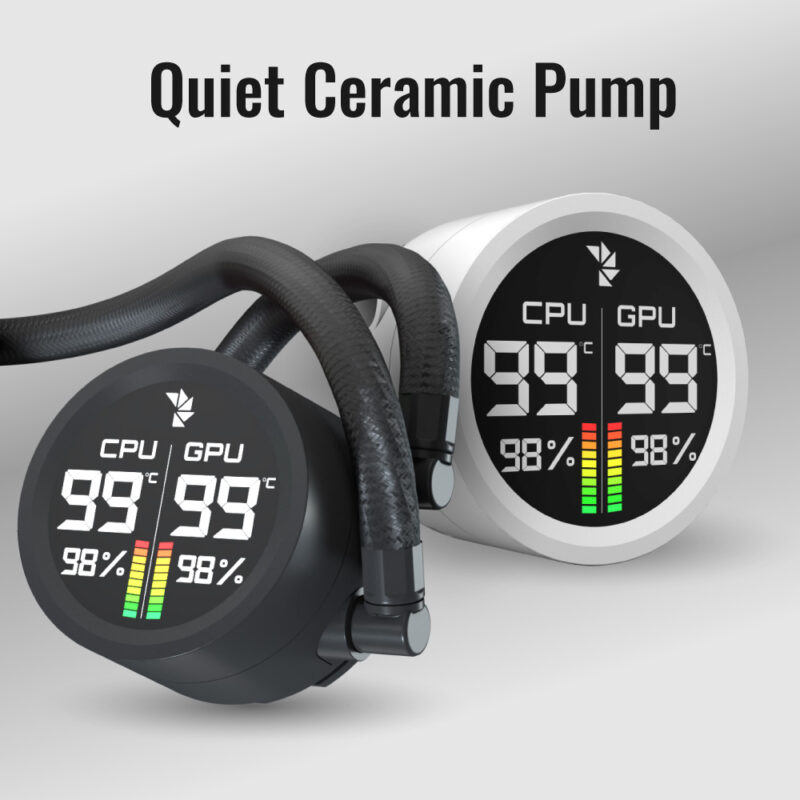

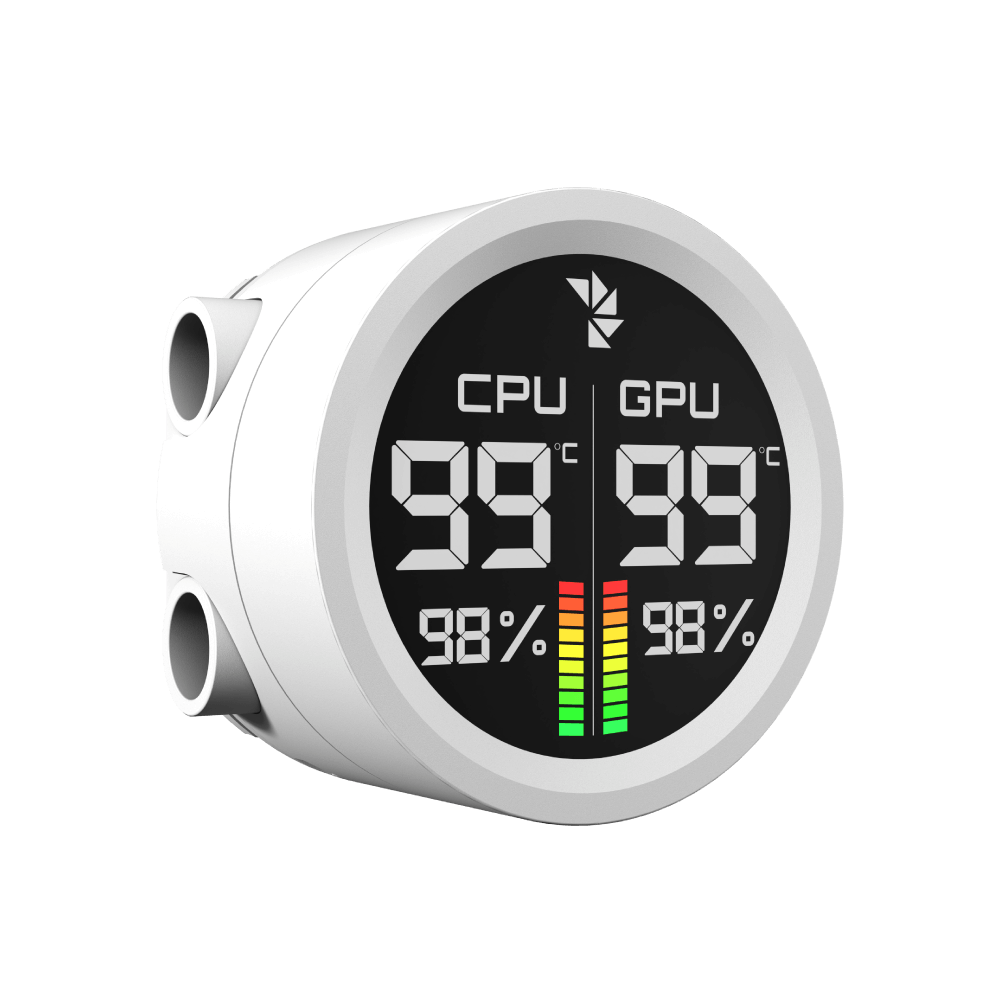

- ARGB-illuminated pump head adds vibrant, customizable lighting to enhance your system’s look.
- 320W TDP rating ensures reliable cooling capacity for demanding systems.
- Pure copper water block with micro-channel design improves heat transfer for better cooling.
- Expanded radiator surface increases heat dissipation for enhanced cooling performance.

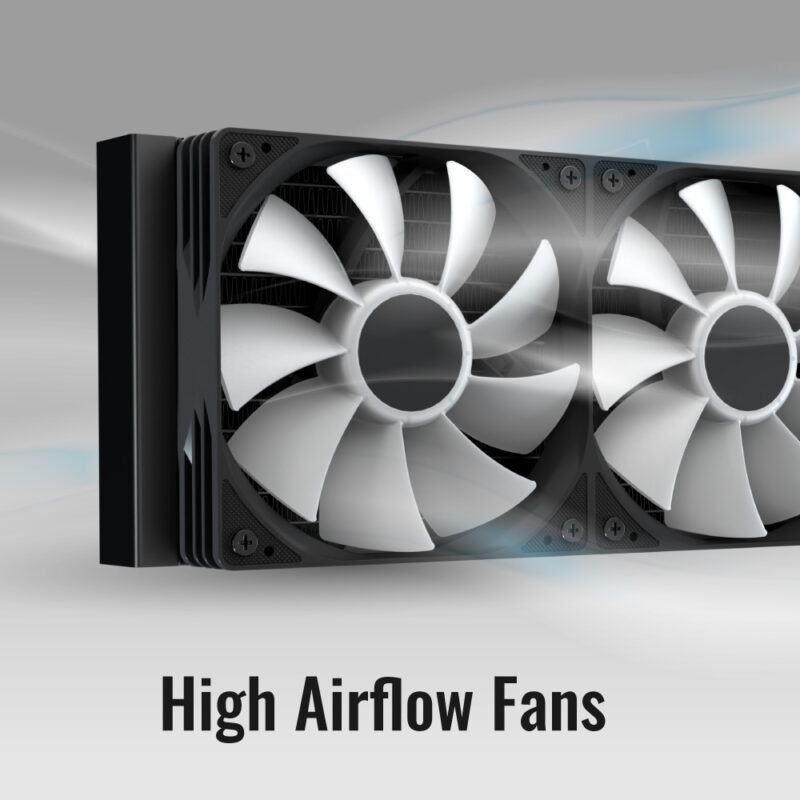

- PWM ARGB fans deliver high airflow and pressure for efficient system cooling.
- Integrated fan frame simplifies installation and keeps cables neat.
- 16.8 million color control lets you match fan and pump lighting to your build’s style.
| Model Name | Abyss L360R Digi BK / Abyss L360R Digi WH |
| Block Material | Copper |
| Radiator Material | Corrosion resistant aluminum alloy |
| Radiator Dimension | 394 × 120 × 27 mm |
| TDP (Thermal Design Power) | 320W |
| Pump Speed | 600 ~ 3000 RPM ± 10% |
| Pump Rated Voltage | DC 12.0V |
| Pump Rated Power | 4.2W |
| Pump Noise | 18 dB(A) |
| Pump Bearing Type | Ceramic bearing |
| Fan Speed | 660 ~ 1800 RPM ± 10% |
| Fan Connector Type | PWM 4-Pin |
| Fan Dimensions (L × W × H) | 360 × 120 × 25.4 mm |
| Fan Starting Voltage | 6V |
| Fan Rated Voltage | DC 12.0V |
| Fan Rated Current | 1A |
| Fan Rated Power | 12W |
| Fan Air Pressure (Max.) (One Fan) | 2.3 mmH₂O |
| Fan Air Flow (Max.) (One Fan) | 81.5 CFM |
| Fan Noise Level (Max.) | 36.0 dB(A) |
| Fan Bearing Type | Hydro bearing |
| MTBF | 30,000 hrs |
| Socket | Intel LGA1851 / LGA1700 / LGA1200 / LGA115X / AMD AM5 / AM4 |
| LED Type | Addressable RGB LED |
| LED Rated Voltage | 5 VDC |
| LED Rated Power | 1.8 W (Pump) / 1.44 W × 3 (Fan × 3) |
| LED Connector | 3-Pin (+5V-D-G) |
