Features:
- Compliant with the latest ATX 3.1 and PCIe 5.1 standards, featuring a more secure 12V-2×6 connector
- Equipped with 100% high-grade 105°C capacitors, ensuring long-term durability, stability, and consistent performance over time
- The compact 140mm shell facilitates easier installation in cases with limited space.

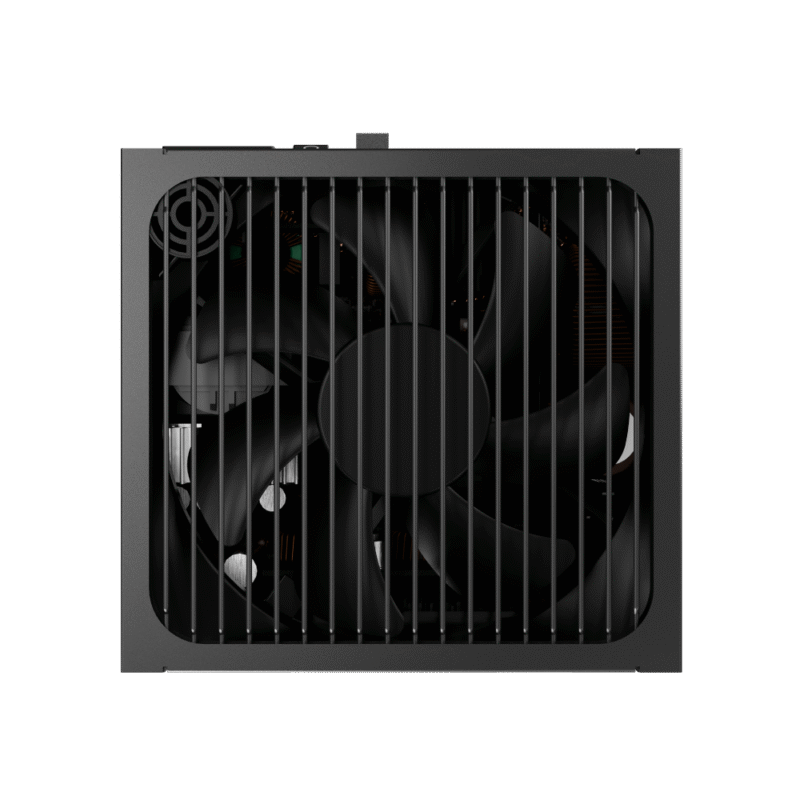

- Featuring a custom 135mm fluid dynamic bearing fan with Zero Fan Mode, the PSU operates silently at light loads for an uninterrupted experience
- Seven different protection mechanisms ensure your PC’s resilience against potential issues: OVP, UVP, OPP, SCP, OCP, OTP, and Input Surge & Inrush Protection
- Compliant with ErP 2013 Lot 6 and ErP 2014 Lot 3 and Vampire Power below 0.25W

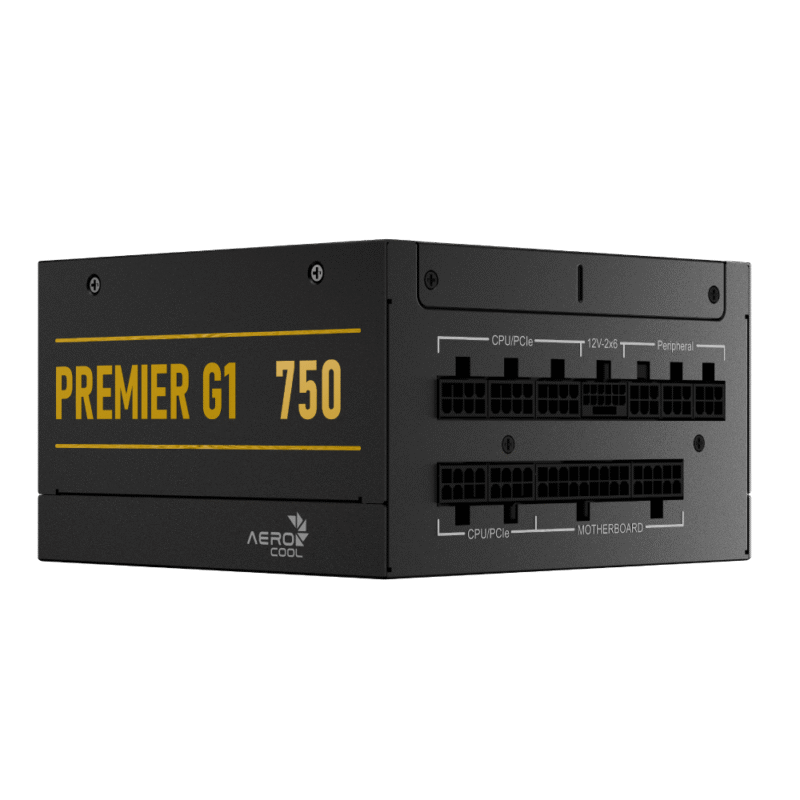

- Fully Modular Design: Connect only the cables you need to reduce clutter, enhance airflow, and create a cleaner, more organized build
- Certified 80 PLUS Gold and Cybenetics Platinum for outstanding real-world efficiency and ultra-low standby power draw, combining top-tier performance with eco-conscious design
| AC INPUT RATING | 100V~240V~ 10A~5A 50Hz-60Hz | ||||
| MODEL NO. | ACPS-2503 | ||||
| DC OUTPUT RATING | +3.3V | +5V | +12V | -12V | +5VSB |
| 20A | 20A | 62.5A | 0.3A | 3A | |
| TOTAL POWER | 100W | 750W | 3.6W | 15W | |
| 750W | |||||
| PREMIER G1 750 CABLE CONFIGURATIONS |
24-pin ATX Power Cable: 600mm, Output Connectors: 1 |
| 4+4-pin CPU Power Cable: 700mm, Output Connectors: 1 | |
| 8-pin CPU Power Cable: 700mm, Output Connectors: 1 | |
| 2x 6+2-pin PCIe Power Cable: 650mm, Output Connectors: 2 | |
| 12V-2×6 PCIe Cable: 650mm, Output Connectors: 1 | |
| 2x SATA Cable: 500+150mm, Output Connectors: 6 | |
| SATA+Peripherals Cable: 500+150mm, Output Connectors: 2xSATA, 2xPeripheral |
