PWM air cooling solution with a 12cm ARGB fan with translucent fan blades that can be controlled using Addressable RGB motherboard or LED control button. Powered by Heat Core Touch Technology (HCTT) with 4 ultra-efficient thermal heat pipes. Black coating on fins increases heat dissipation area and improves efficiency of dissipation.

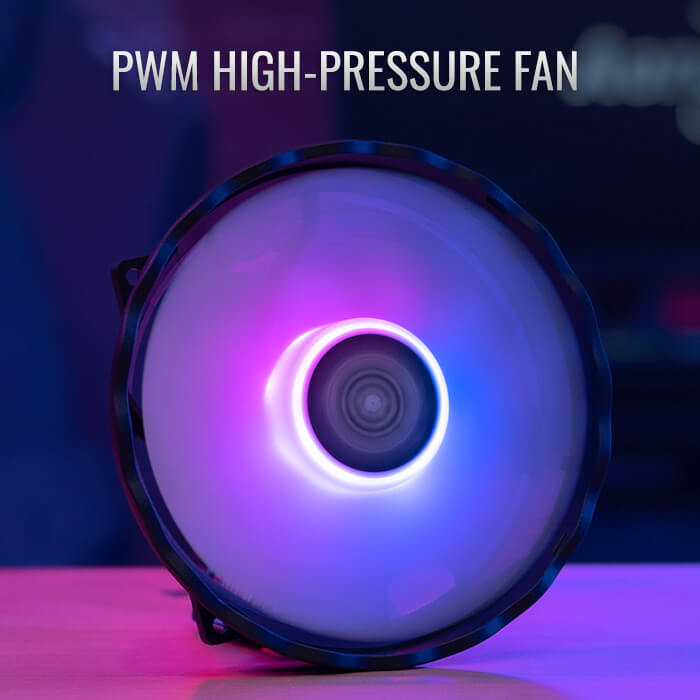

- PWM air cooling solution with 12cm ARGB fan with translucent fan blades
- Compatible with Addressable RGB motherboards (ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion) or hubs (H66F)
- Heat Core Touch Technology with 4 ultra-efficient thermal heat pipes
- Black thermal coating on fins increases the cooler’s thermal conductivity and heat dissipation capabilities
- Upgraded high efficiency fins for maximum thermal performance
- Compatible with most current motherboard designs
| Model | Rave 4 ARGB |
| Base Material | Aluminum block with HCTT Heat Core Touch Technology |
| Fin Material | Aluminum |
| Heat Pipe | Dia. 6mm x 4 |
| Dimension | 125 x 80 x 135mm |
| TDP (Thermal Design Power) | 130 |
| Fan Speed | 900 – 1800 RPM |
| Connector | PWM 4-Pin |
| Fan Dimension | 120 x 120 x 25mm |
| Bearing Type | Hydraulic Bearing |
| Started Voltage | 5V |
| Rated Voltage | 12V |
| Rated Current | 0.5 A |
| Power Consumption | 6 Watts |
| Air Pressure | 0.6 – 1.6 mm-H2O |
| Air Flow | 24.1 – 58.0 CFM |
| Noise | 18 – 27 dBA |
| MTBF (Mean Time Before Failure) | 60000 hrs. |
| Socket | LGA 1700 / 1200 / 115X / 775, AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1 |
| Note | For compatibility, check that LGA1700/AM5 is listed as a supported bracket on the packaging. |
| EAN Code | 4711099472253 |
