Features:
- Compliant with the latest ATX 3.1 and PCIe 5.1 standards, featuring a more secure 12V-2×6 connector.
- Equipped with 100% high-grade 105°C capacitors, ensuring long-term durability, stability, and consistent performance over time.
- The compact 140mm length shell facilitates easier installation in cases with limited space.

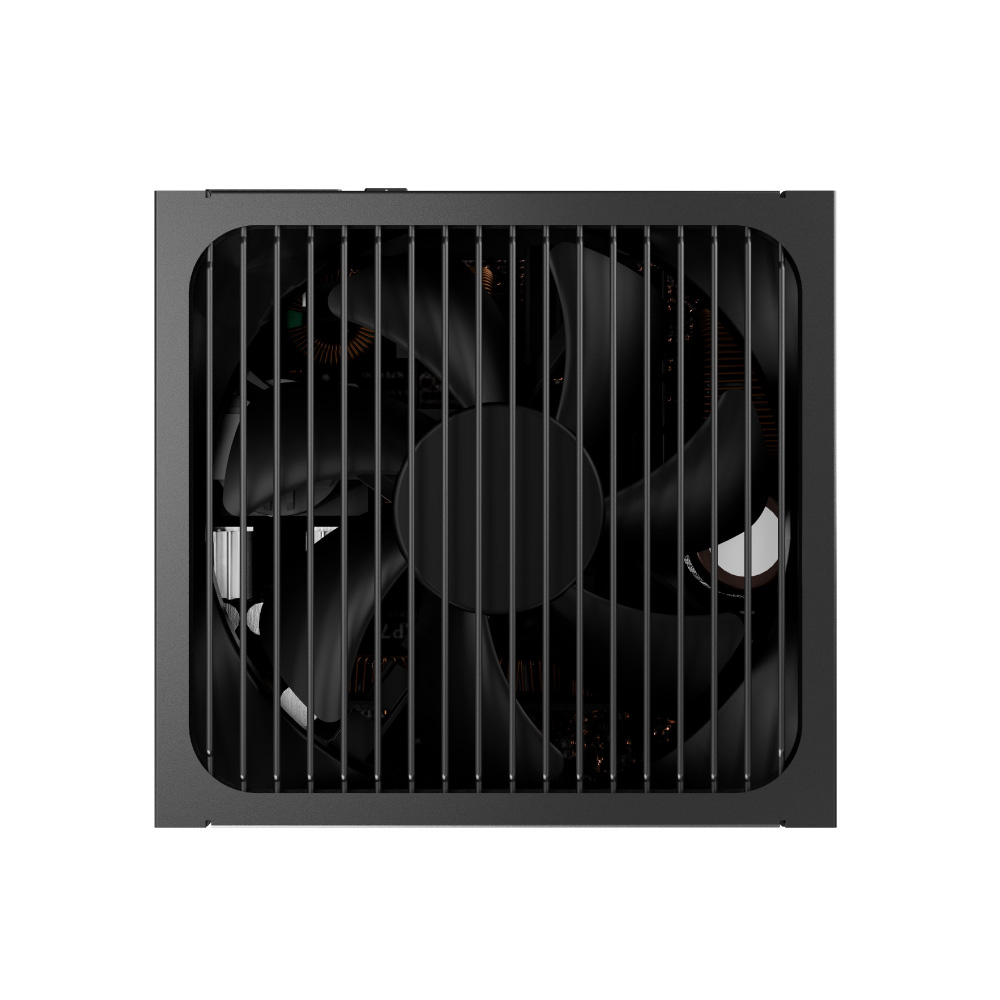

- Featuring a custom 135mm fluid dynamic bearing fan and a low-profile fan curve, the PSU operates quietly at light loads, ensuring an uninterrupted experience.
- Seven different protection mechanisms ensure your PC’s resilience against potential issues: OVP, UVP, OPP, SCP, OCP, OTP, and Input Surge & Inrush Protection.
- Compliant with ErP 2013 Lot 6 and ErP 2014 Lot 3 and Vampire Power below 0.25W.
- Flat Direct Cable: Premium flat cables simplify component installation, minimize clutter, and provide exceptional cable routing for a more streamlined and tidier setup.
| AC INPUT RATING | 100V-240V~ 10.0A 47Hz-63Hz | ||||
| MODEL NO. | ACPS-2504 | ||||
| DC OUTPUT RATING | +3.3V | +5V | +12V | +5VSB | |
| 20A | 20A | 70.5A | 3.0A | ||
| TOTAL POWER | 110W | 846W | 15W | ||
| Smart G1 850 CABLE CONFIGURATIONS |
24-pin ATX Power Cable: 600mm, Output Connectors: 1 |
| 8-pin CPU + 4+4-pin CPU Power Cable: 700+150mm, Output Connectors: 2 | |
| 6+2-pin PCIe Power Cable: 650+150mm, Output Connectors: 2 | |
| 6+2-pin PCIe Power Cable: 650mm, Output Connectors: 1 | |
| 12V-2×6 PCIe Cable: 650mm, Output Connectors: 1 | |
| 2x SATA Cable: 500+150mm, Output Connectors: 6 | |
| SATA+Peripherals Cable: 500+150mm, Output Connectors: 2xSATA, 2xPeripheral |
