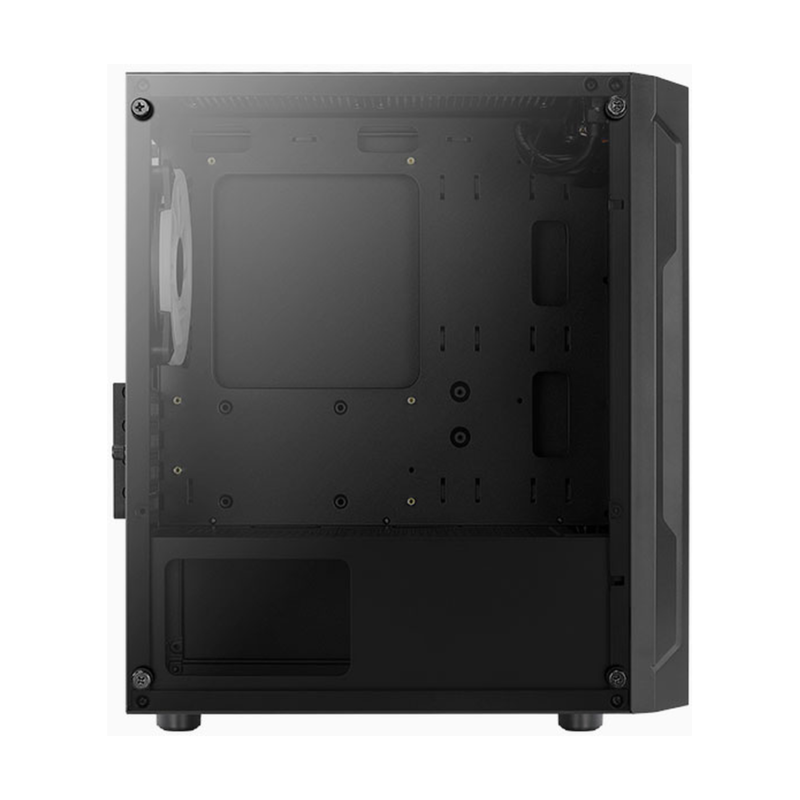

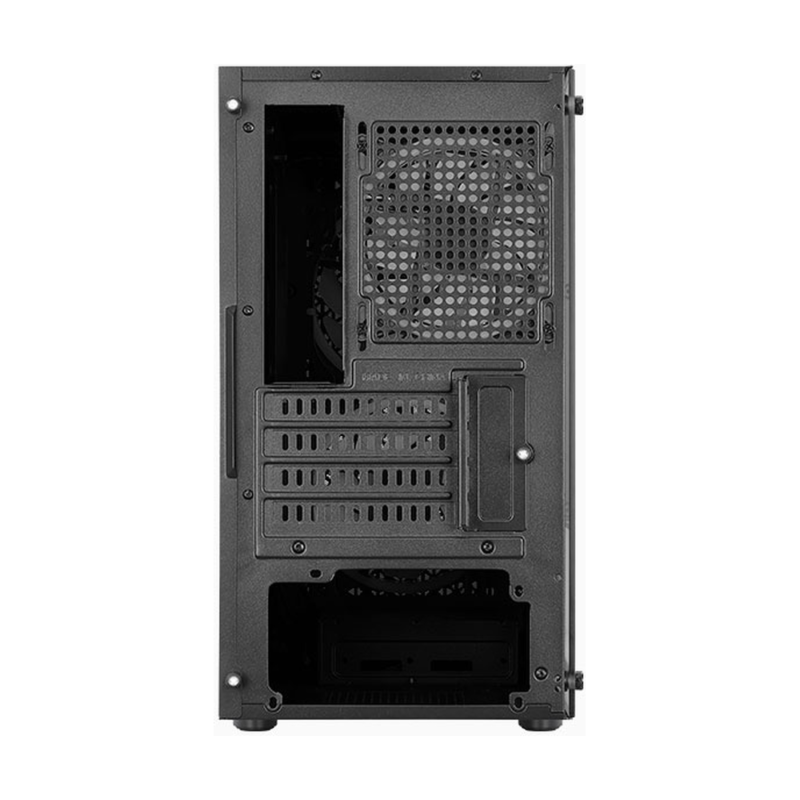

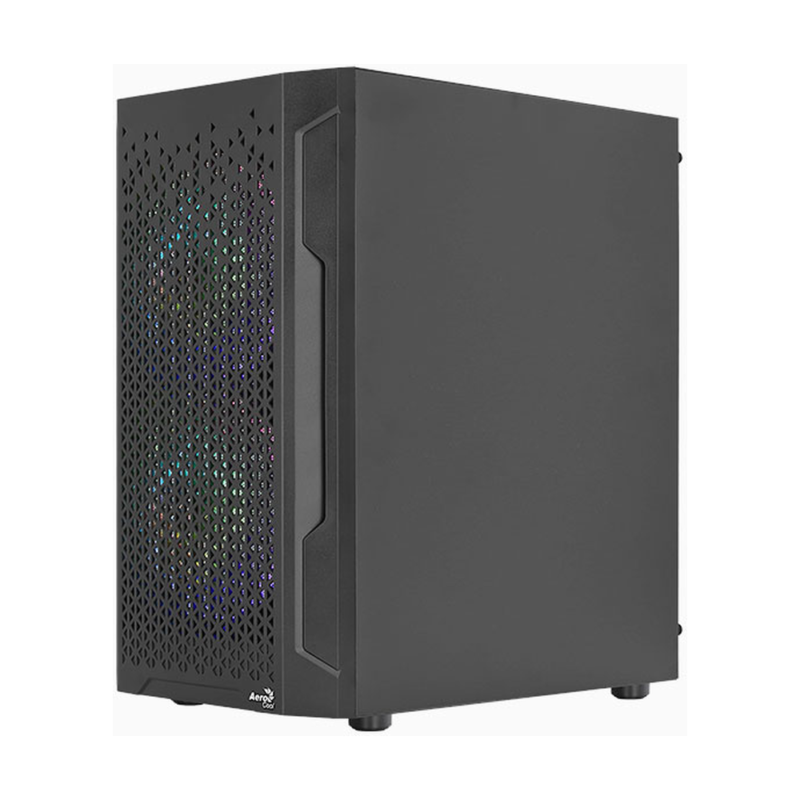

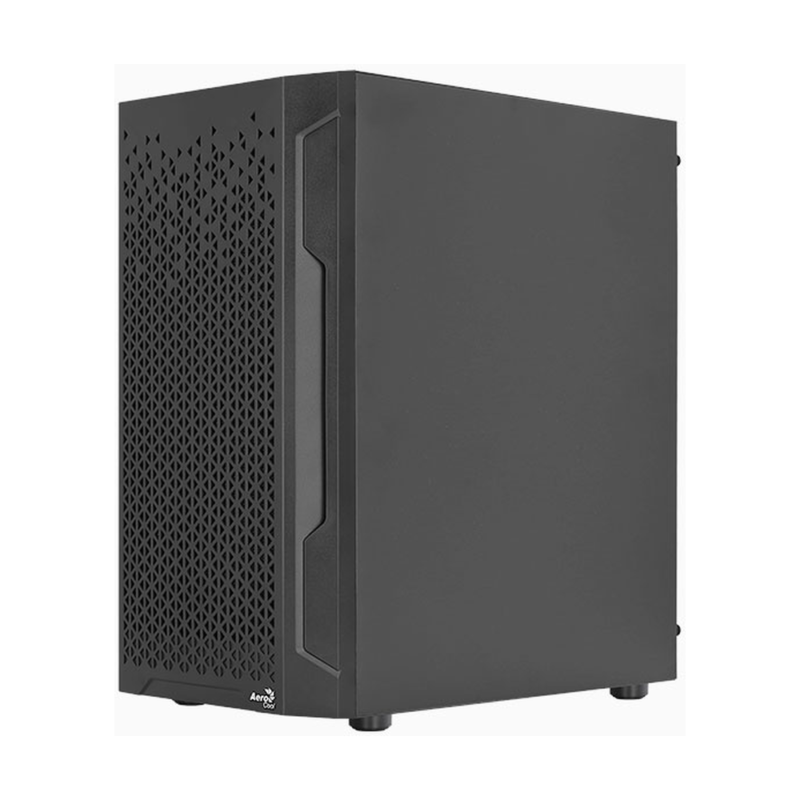

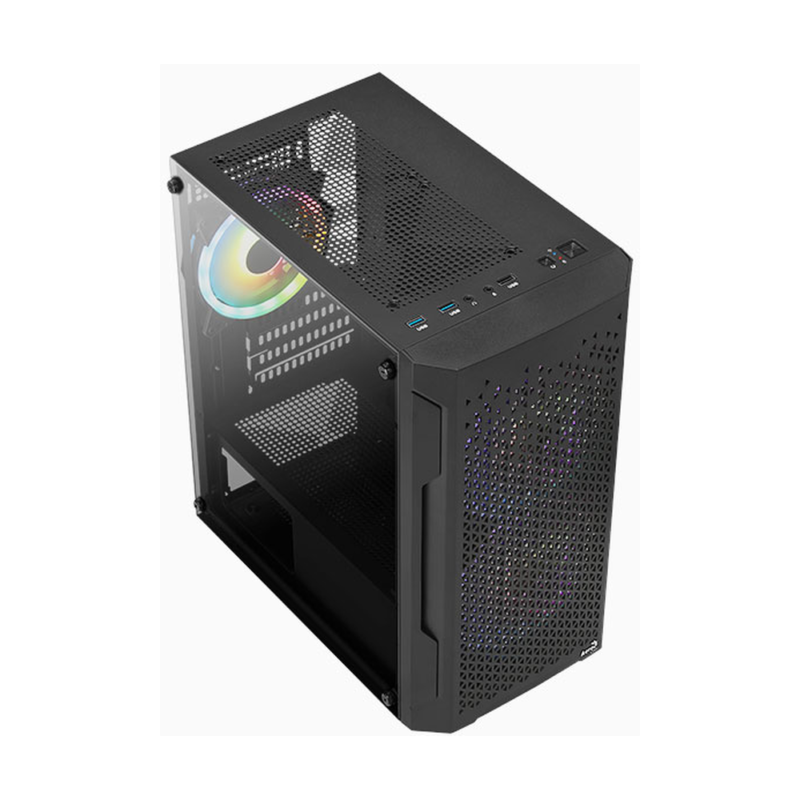

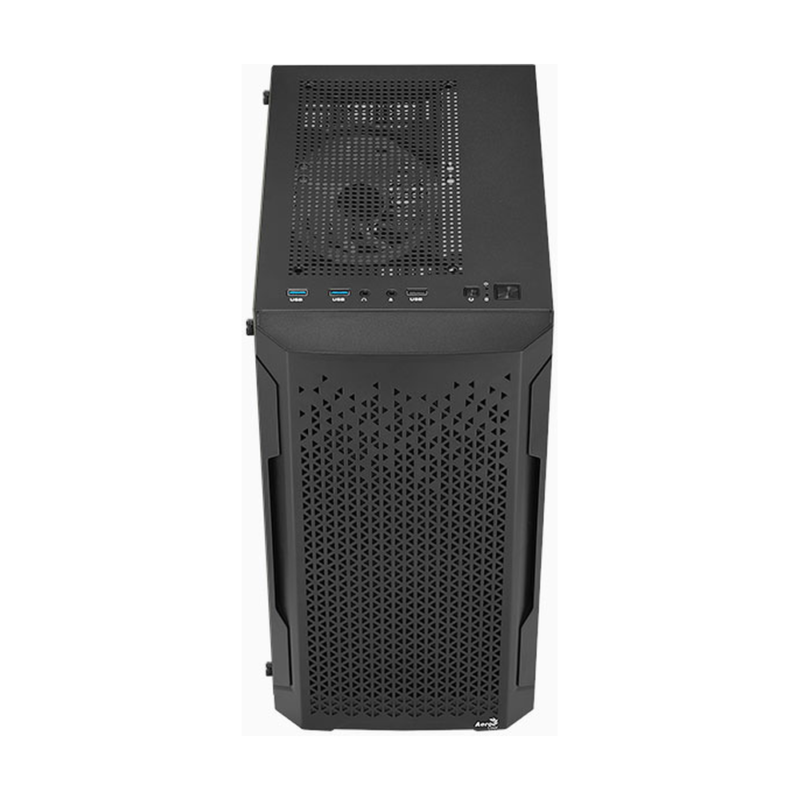

Designed with ventilation in mind, this case delivers superior air flow while allowing for viewing of your front LED fans. This high-performance mini tower case comes equipped with a full tempered glass side panel to showcase the inside of your rig. Supports liquid cooling in the front and rear of the case for maximum efficiency cooling.
| Model | Trinity Mini |
| Case Type | Mini Tower |
| Color | Black |
| Body Material | SPCC |
| Front Panel Material | ABS |
| Steel Thickness | 0.5mm |
| Motherboards | Micro ATX/mini-ITX |
| Case Dimensions (Internal) | 200 x 375 x 300mm (W x H x D) |
| Case Dimensions (Overall) | 206.5 x 385 x 353.4mm (W x H x D) |
| 3.5” Drive Bays | 2 Max. (2 x 3.5”/2.5″) |
| 2.5” Drive Bays | 3 Max. (1 x 2.5” and 2 x 2.5”/3.5”) |
| Expansion Slots | 4 |
| GPU Clearance | Supports GPU up to 297mm (without front radiator) |
| CPU Cooler Clearance | Supports CPU cooler up to 158mm |
| Air Cooling | Front: 120mm x 2 or 140mm x 2 (Max.), Top: 120mm x 2 (Max.), Rear: 120mm x 1 (Max.), PSU Shroud: 120mm x 2 (Max.) |
| Liquid Cooling | Front: 120/240mm Radiator (Optional) (for 240mm, supports max thickness of 28mm), Rear: 120mm Radiator (Optional) |
| I/O Ports | USB3.0 x 2 | USB2.0 x 1 | HD Audio & Mic. |
| Internal Cable Management Depth | 20.5mm |
| Power Supply | ATX PSU (Including cables, up to 159mm) (Optional) |
| EAN Code | Trinity Mini-G-BK-v1: 4710562758610 (includes: 12cm black fan x 1), Trinity Mini-G-BK-v2: 4710562758627 (includes: 14cm FRGB fan x 2, 12cm FRGB fan x 1), Trinity Mini-G-BK-v3: 4710562758634 (includes: 14cm RGB fan x 2, 12cm RGB fan x 1) |
| PC Case Colour | Black |
|---|---|
| PC Case Motherboard Support | ATX |
