Features:
- AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：2*DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Go to GIGABYTE’s website for the latest CPU support list.) |
| Chipset | AMD B650 |
| Memory | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz Support for DisplayPort 1.4 version 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3 Support for native HDMI 2.1 TMDS compatible ports Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen™ 7000/9000 Series support PCIe 4.0 x16 AMD Ryzen™ 8000 Phoenix 1 support PCIe 4.0 x8 AMD Ryzen™ 8000 Phoenix 2 support PCIe 4.0 x4 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 x1 |
| Storage Interface | 1 x M.2 connector (M2A_CPU), CPU integrated, supports PCIe 4.0 x4/x2 depending on CPU 1 x M.2 connector (M2C_SB), chipset integrated, supports PCIe 4.0 x4/x2 4 x SATA 6Gb/s RAID 0/1/10 for NVMe SSD RAID 0/1/10 for SATA storage |
| USB | CPU: 1 x USB Type-C® rear (USB 3.2 Gen 1) 1 x USB 3.2 Gen 1 rear 1 x USB 2.0 rear Chipset: 2 x USB 3.2 Gen 1 rear 1 x USB Type-C® internal header (USB 3.2 Gen 1) 2 x USB 3.2 Gen 1 internal 5 x USB 2.0/1.1 (rear + internal) |
| Internal I/O Connectors | 24-pin ATX power connector 8-pin ATX 12V power connector CPU fan header 2 x system fan headers 2 x RGB/ARGB LED headers 2 x M.2 slots 4 x SATA 6Gb/s front panel header front panel audio header USB Type-C® header USB 3.2 Gen 1 header 2 x USB 2.0 headers TPM header Q-Flash Plus button reset jumper Clear CMOS jumper |

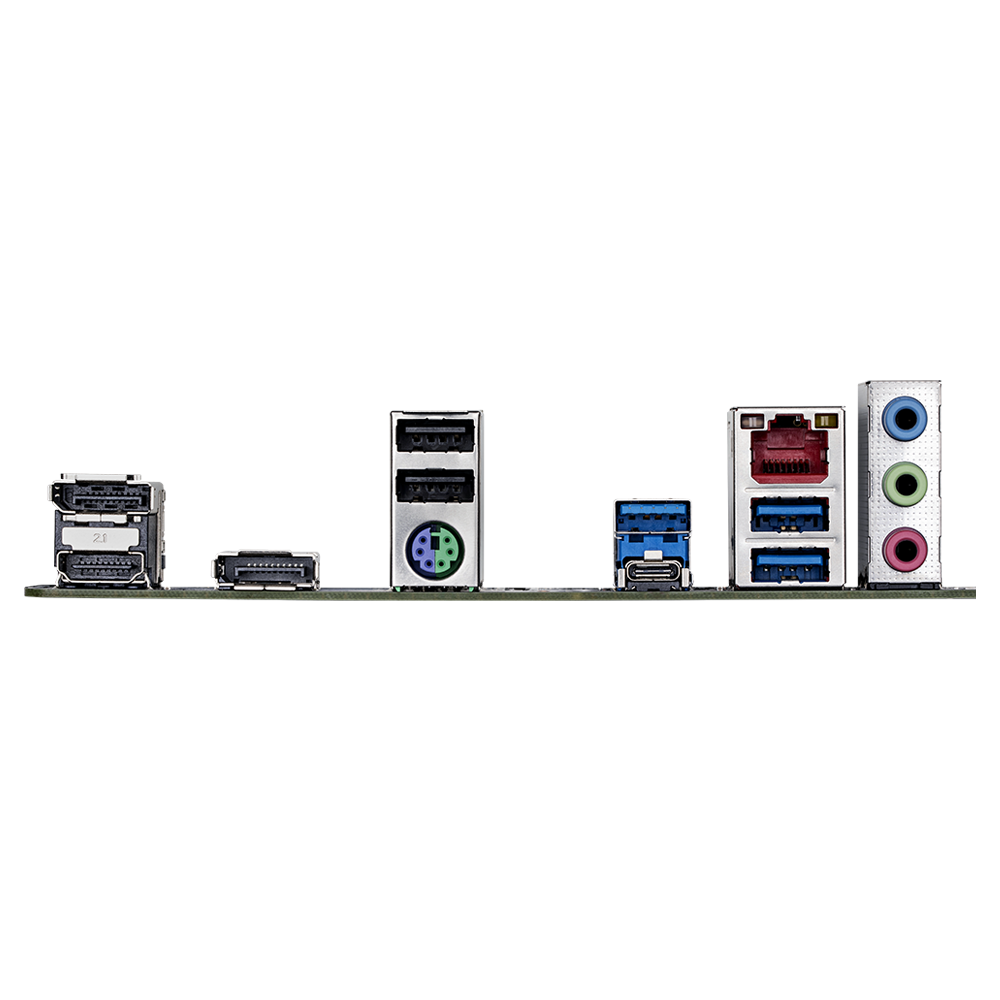

| Back Panel Connectors | PS/2 keyboard/mouse 1 x USB Type-C® (USB 3.2 Gen 1) 3 x USB 3.2 Gen 1 2 x USB 2.0/1.1 1 x HDMI 2 x DisplayPort 1 x RJ-45 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control |
| BIOS | 1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM) LAN bandwidth management software |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
