Features:
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital 6+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- PCIe EZ-Latch Plus : PCIe slots with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0×4 slot
- Efficient Thermal : VRM Thermal Armor Advanced
- Fast Networking : GbE LAN & Wi-Fi 6 802.11ax
- Extended Connectivity : HDMI, Displayport
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE’s website for the latest CPU support list.) |
| Chipset | AMD B850 |
| Memory Speed | Support for DDR5 8200(O.C.) / 8000(O.C.) / 7950(O.C.) / 7900(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5200 / 4800 / 4400 MT/s memory modules |
| Memory | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Memory Architecture | Dual channel memory architecture |
| Memory Type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory Profile | Support for AMD EXPO™ and Extreme Memory Profile (XMP) memory modules |
| Display Output – DisplayPort | 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz (DisplayPort 1.4, HDR) |
| Display Output – HDMI | 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR, native HDMI 2.1 TMDS compatible) |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1 Gbps / 100 Mbps / 10 Mbps) |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE: 802.11a/b/g/n/ac/ax, 2.4/5 GHz, Bluetooth 5.3, 11ax 80MHz |
| Expansion Slot 1 | 1 x PCI Express x16 slot (CPU) – PCIEX16: PCIe 5.0 x16 (Ryzen™ 9000/7000 Series) / PCIe 4.0 x8 (Ryzen™ 8000 Phoenix 1) / PCIe 4.0 x4 (Ryzen™ 8000 Phoenix 2) |
| Expansion Slots 2, 3 & 4 | 3 x PCI Express x16 slots (Chipset) – PCIEX1_1/PCIEX1_2/PCIEX1_3: PCIe 3.0 x1 |
| Storage – M.2 (M2A_CPU) | 1 x M.2 connector (CPU), Socket 3, M key, type 22110/2280: PCIe 5.0 x4/x2 (Ryzen™ 9000/7000 Series) / PCIe 4.0 x4/x2 (Ryzen™ 8000 Phoenix 1 & 2) |
| Storage – M.2 (M2B_CPU) | 1 x M.2 connector (CPU), Socket 3, M key, type 22110/2280: PCIe 4.0 x4/x2 (Ryzen™ 9000/7000 Series & 8000 Phoenix 1) / PCIe 4.0 x2 (Ryzen™ 8000 Phoenix 2) |
| Storage – M.2 (M2C_SB) | 1 x M.2 connector (Chipset), Socket 3, M key, type 22110/2280: PCIe 4.0 x2 SSDs |
| Storage – SATA | 4 x SATA 6Gb/s connectors |
| Storage – RAID (NVMe) | RAID 0, RAID 1, RAID 5 (Ryzen™ 9000 Series only), and RAID 10 support for NVMe SSD storage devices |
| Storage – RAID (SATA) | RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB – Back Panel (CPU) | 1 x USB Type-C® port (USB 3.2 Gen 1), 2 x USB 3.2 Gen 2 Type-A ports (red) |
| USB – Internal (Chipset) | 1 x USB Type-C® port with USB 3.2 Gen 1 support via internal USB header, 2 x USB 3.2 Gen 1 ports via internal USB header |
| USB – Back Panel (Chipset) | 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports |
| USB – Internal (Chipset + Hub) | 4 x USB 2.0/1.1 ports via internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 3 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x TPM header (GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only), 1 x reset jumper, 1 x Clear CMOS jumper |

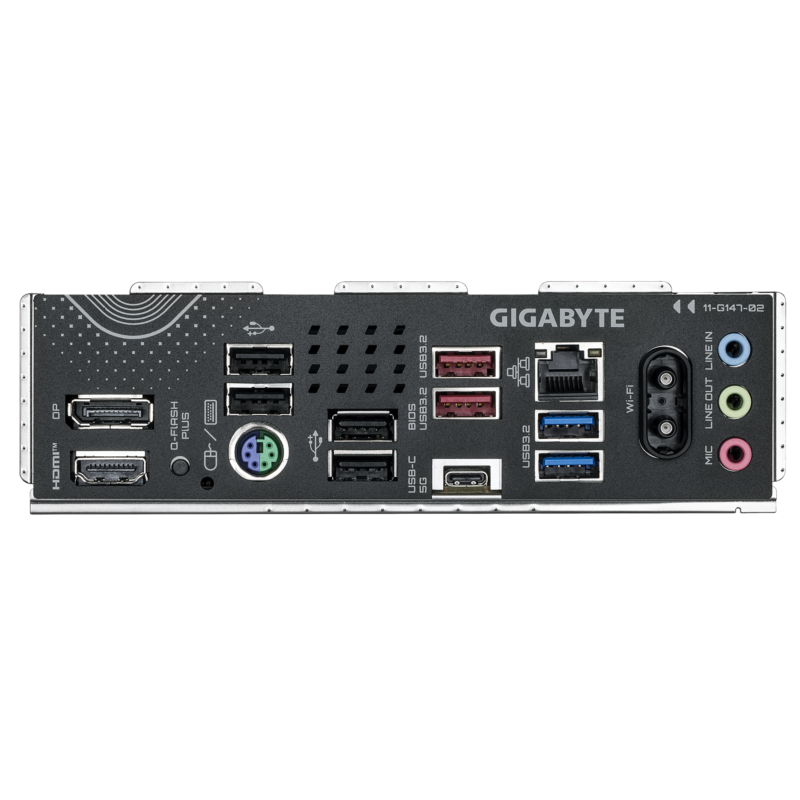

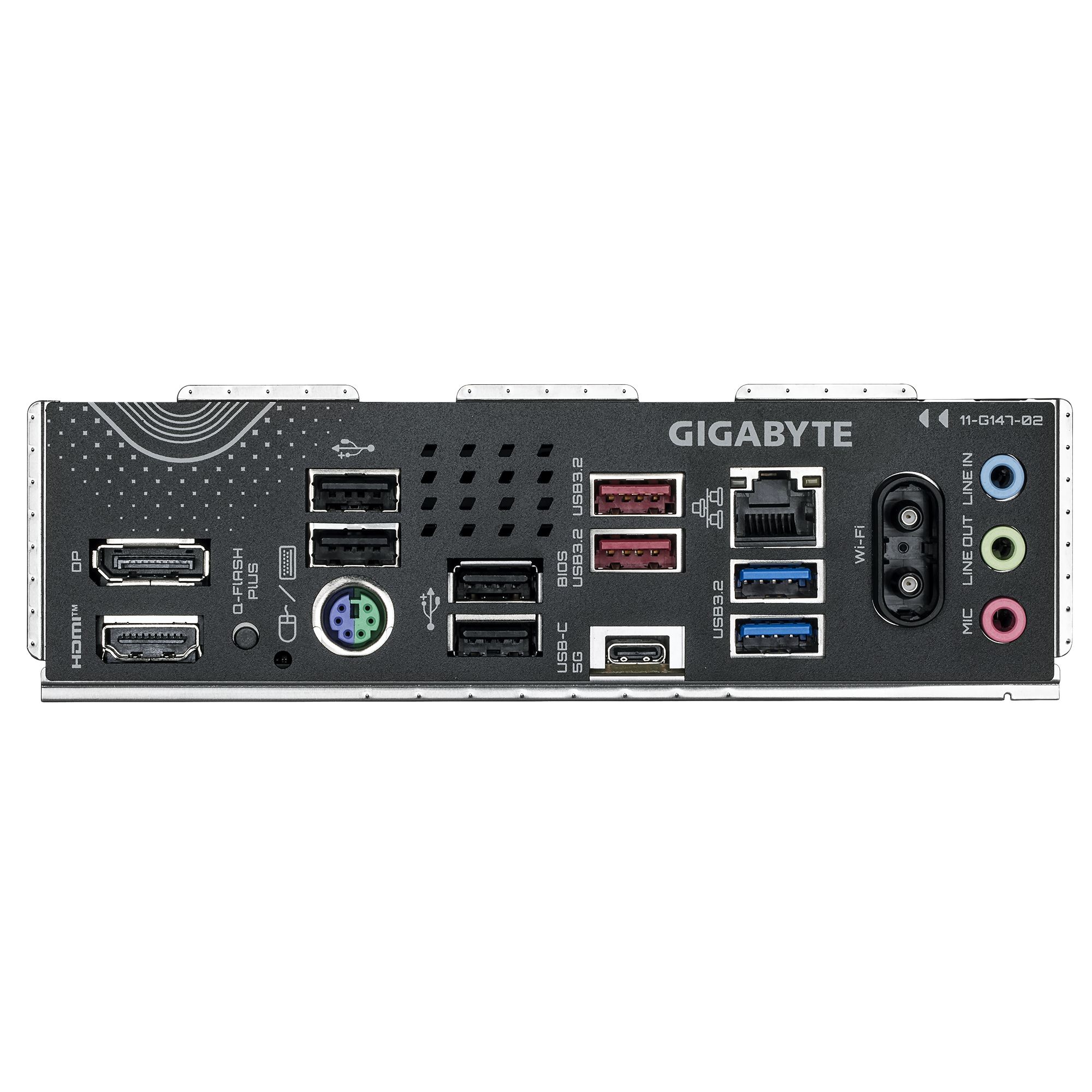

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port, 1 x DisplayPort, 1 x HDMI port, 1 x Q-Flash Plus button, 2 x USB 3.2 Gen 2 Type-A ports (red), 1 x USB Type-C® port (USB 3.2 Gen 1), 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 2 x antenna connectors (2T2R), 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control |
| BIOS | 1 x 256 Mbit flash, Licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX; 30.5cm x 24.4cm |
