Features:
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 16+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : THUNDERBOLT™ 4 Type-C with DP-Alt, DisplayPort
- High-Res Audio : ALC1220 & WIMA Audiophile Grade Capacitors
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU; refer to CPU Support List for details |
| Chipset | Intel® Z890 Express Chipset |
| Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s; 4 x DDR5 DIMM sockets supporting up to 256 GB; dual channel memory architecture; support for ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode); support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16; support for Extreme Memory Profile (XMP); support CUDIMM memory module |
| Onboard Graphics | Intel® HD Graphics support; Thunderbolt™ 4 / USB4 Type-C display output up to 5120×2880@60Hz; DisplayPort 2.1 support; front HDMI 1920×1080@30Hz; DisplayPort up to 4096×2304@60Hz; up to triple-display support |
| Audio | Realtek® ALC1220 CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps) |
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 or Realtek Wi-Fi 7 RTL8922AE; Wi-Fi 7 (802.11be) 2.4/5/6 GHz; Bluetooth 5.4; 160MHz support; Windows 11 required for full Wi-Fi 7 functionality |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (CPU); 2 x PCIe 4.0 x4 slots (chipset) |
| Storage Interface | 4 x M.2 slots (PCIe 5.0/4.0 x4 support depending slot); 4 x SATA 6Gb/s; RAID 0/1/5/10 support for NVMe and SATA |
| USB | Thunderbolt™ 4 USB Type-C; USB 3.2 Gen 2 Type-A; USB 3.2 Gen 1 ports; USB 2.0 ports via headers and back panel |
| Internal I/O Connectors | 24-pin ATX power; dual 8-pin CPU power; fan headers; RGB headers; M.2 slots; SATA ports; USB headers; TPM header; Q-Flash Plus button; Clear CMOS jumper; reset/power buttons |

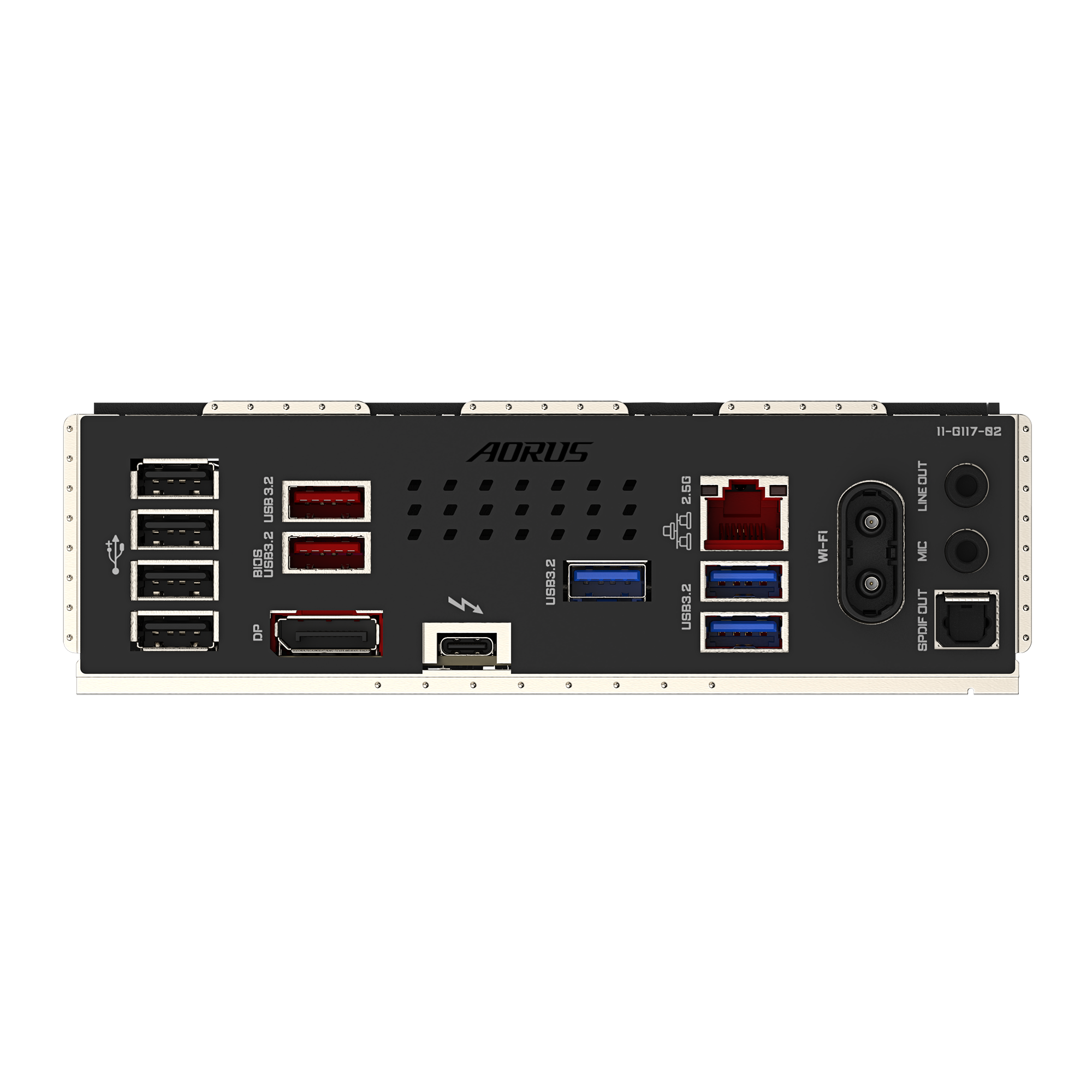

| Back Panel Connectors | Thunderbolt™ 4 USB-C; USB 3.2 Gen 2/Gen 1; USB 2.0; DisplayPort; RJ-45; optical S/PDIF; audio jacks; antenna connectors |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed detection; water cooling flow rate detection; fan fail warning; fan speed control |
| BIOS | 256 Mbit flash; AMI UEFI BIOS; PnP 1.0a; DMI 2.7; WfM 2.0; SMBIOS 2.7; ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC); Q-Flash; Q-Flash Plus; Smart Backup |
| Bundled Software | Norton® Internet Security (OEM); LAN bandwidth management software |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
